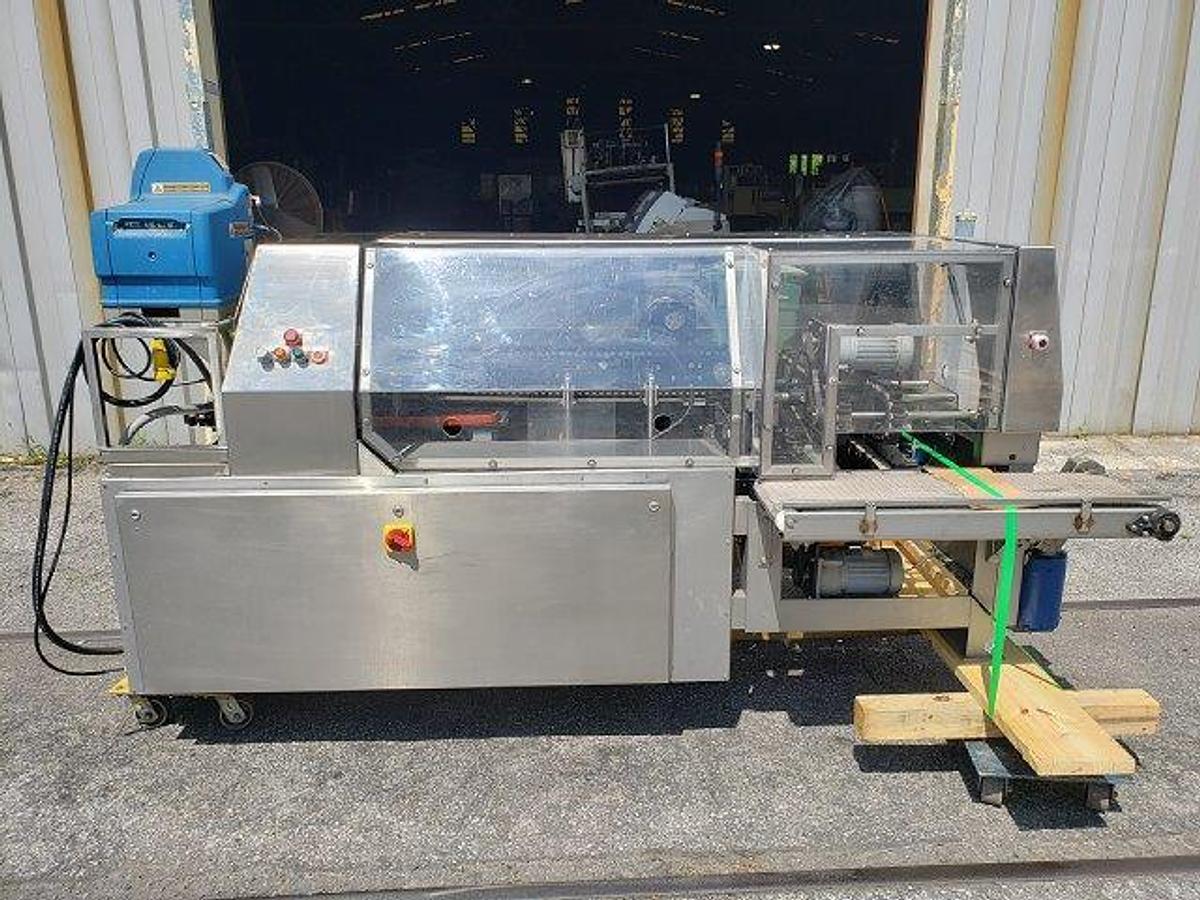

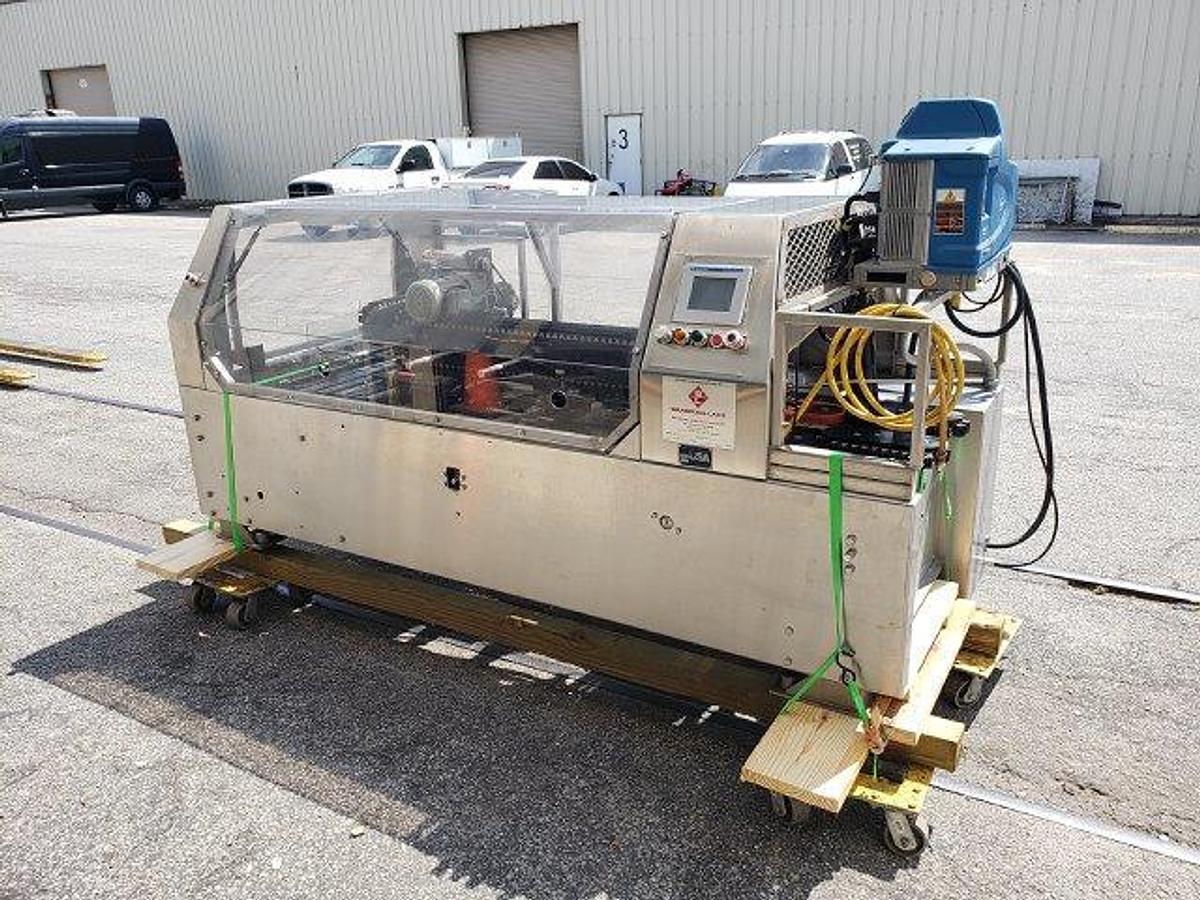

Bradman Lake Compact R Tri-Seal Carton Closer
or
Call (843) 856-5001
Description
The Bradman Lake Compact R (now called the RA60) is an automatic, right-angle three-flap (tri-seal) carton closer. Featuring a space-saving footprint, it is designed to fold and glue the hinged lids of top-load cartons. The machine is defined by its 90-degree configuration, which uses a positive mechanical turning system to rotate each box 90 degrees mid-cycle to seal the front and side flaps sequentially. This system comes with a Nordson ProBlue 7 hot melt glue system to execute strong, precise flap bonds. It is well-suited for chilled / frozen food, bakery, and pharmaceutical secondary packaging environments.
Specifications
| Manufacturer | Bradman Lake |
| Model | Compact R Triseal Carton Closer |
| Serial Number | 15812 |
| Electrical | 240V / 3ph / 60Hz |

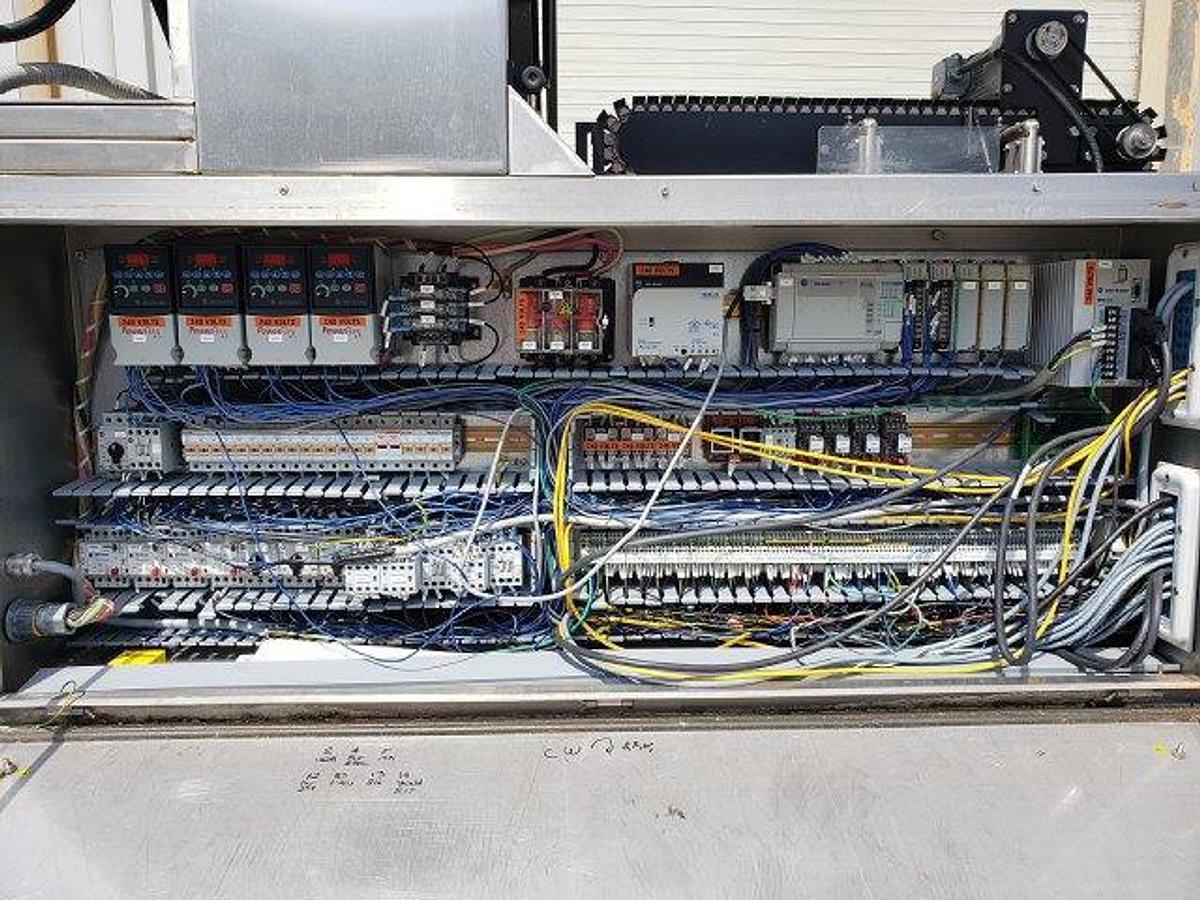

| Controls | AB MicroLogix 1500 PLC |
| . | AB PanelView Plus 600 HMI |
| Closure | Nordson ProBlue 7 hot melt glue |
| Sizes | 100 mm L x 75 mm W x 25 mm D minimum |
| .. | 350 mm L x 305 mm W x 120 mm D maximum |
| Speed | OEM rated at Up to 60 cpm |
| Condition | Used |
| Footprint | Approx. 110″ L x 62″ W x 48″ H |
| Notes | 10-1/2″ W carton conveyor belt; Stainless steel frame; Casters included |
