ADCO AFCX-35-1-SS Carton Former

Description

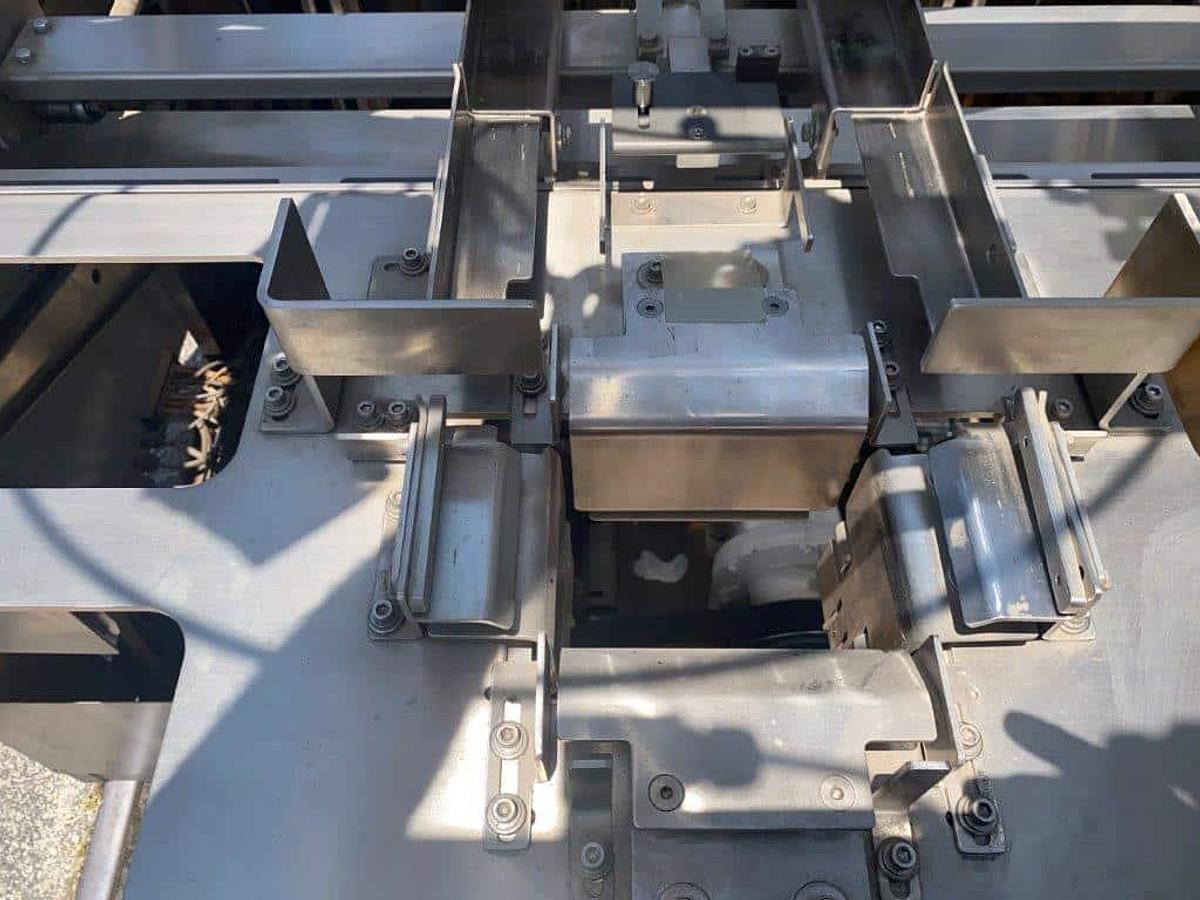

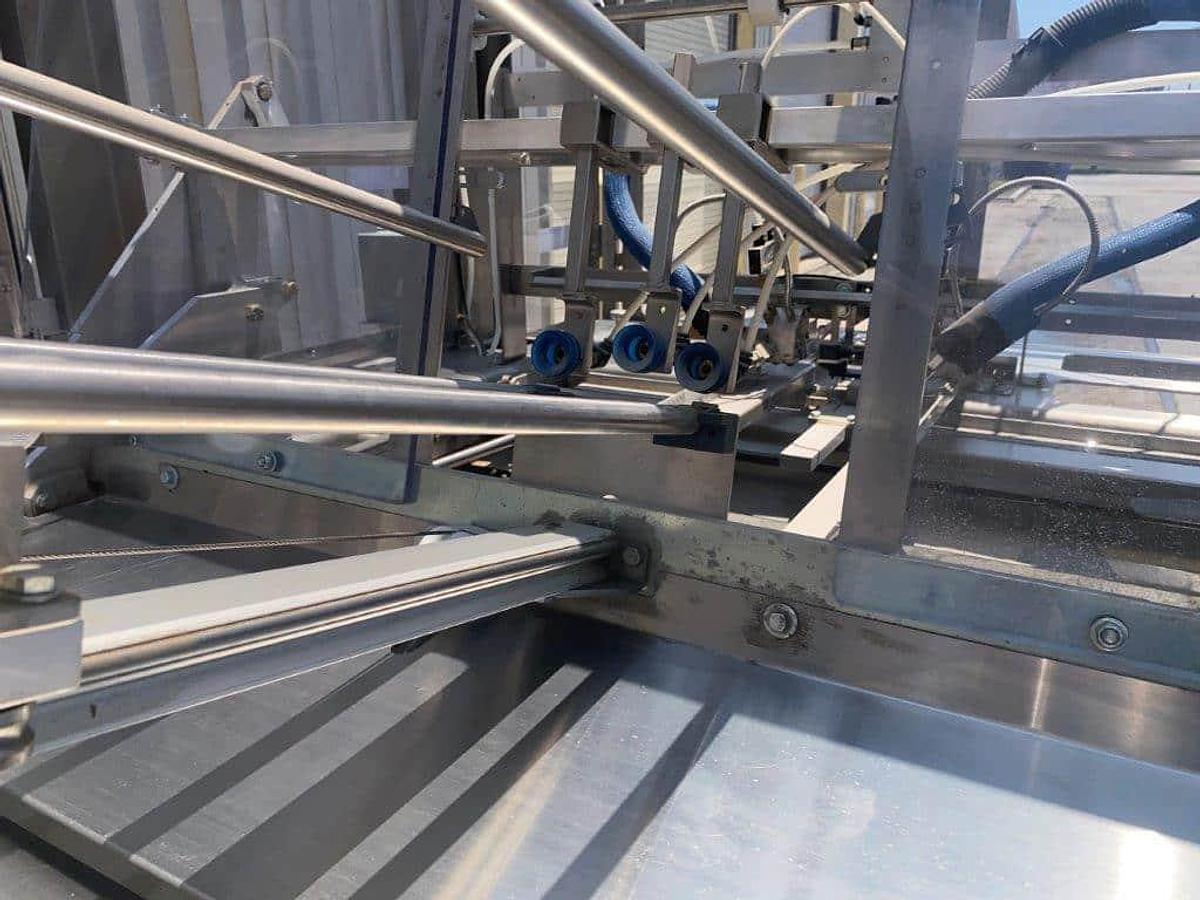

The ADCO AFCX-35-1-SS is an automatic machine for forming trays and vertical top-load cartons. Fabricated with stainless steel construction for durability in sanitary industrial environments, it uses a single mechanical mandrel to erect flat blanks and secure them into shape using an integrated Nordson ProBlue glue unit. This system is widely deployed in food processing, pharmaceutical, and consumer goods production facilities where automated carton or tray erecting must feed directly into manual or top-load automatic product insertion lines.

Specifications

ManufacturerADCO Manufacturing
ModelAFCX-35-1-SS
Serial Number5160HG
Electrical460V / 3ph / 60Hz

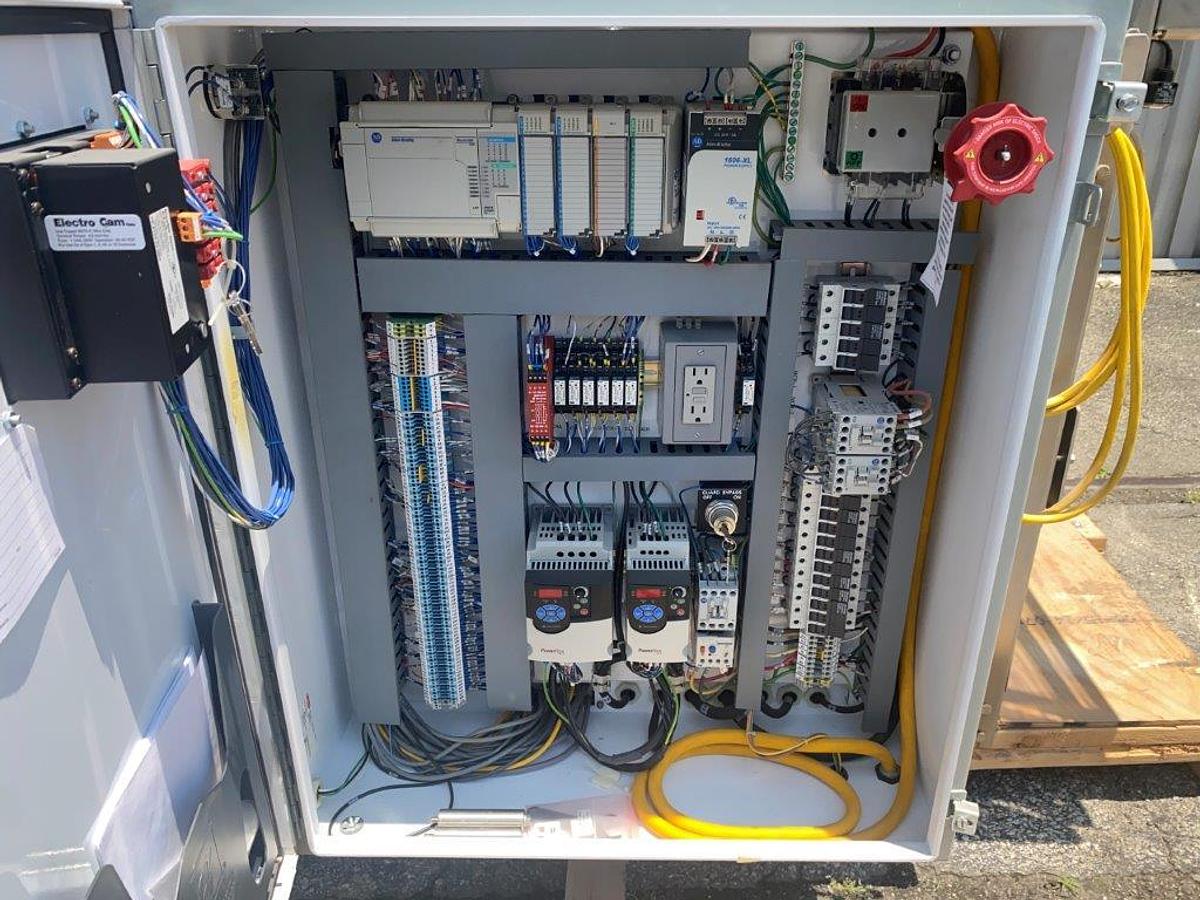

ControlsAB MicroLogix 1500 PLC
.AB PanelView Plus 600 HMI

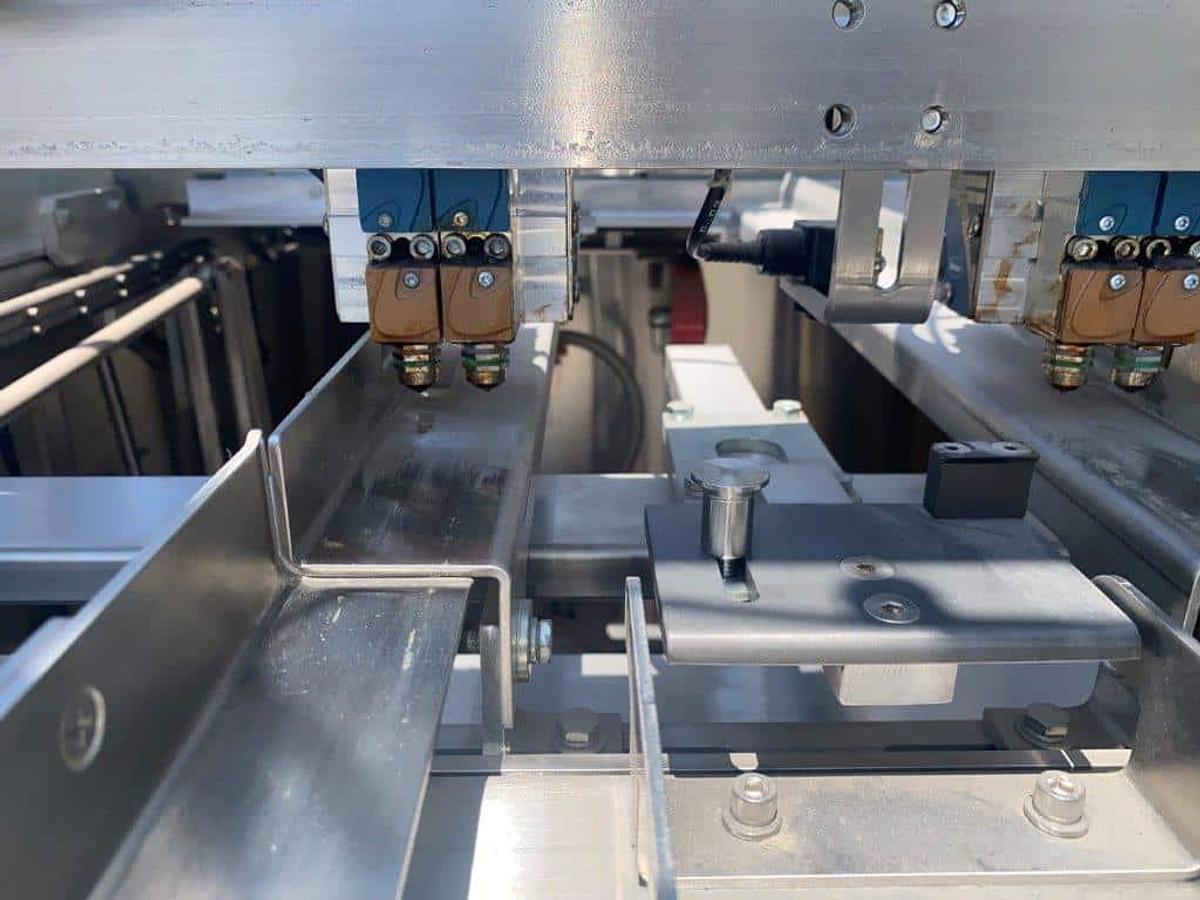

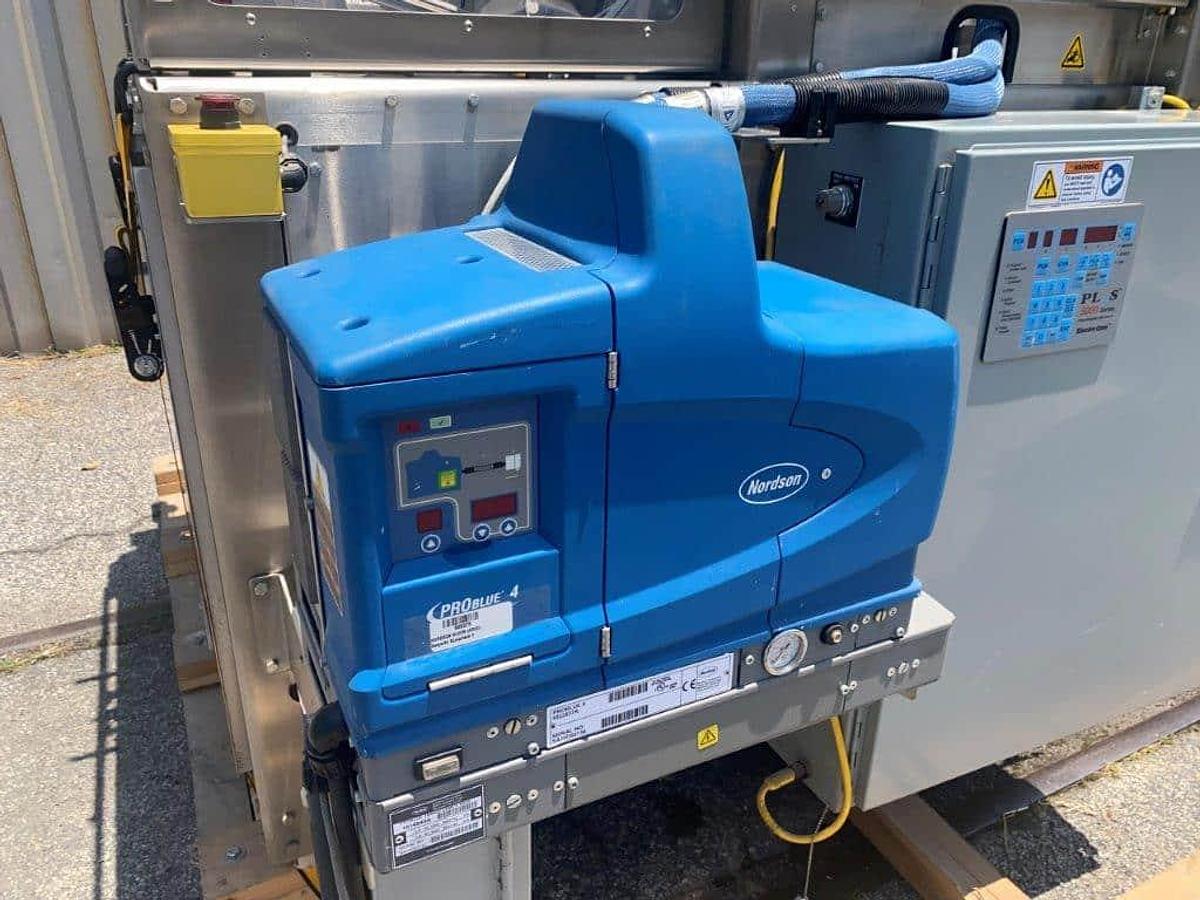

ClosureNordson ProBlue 4 hot melt glue
SizeCurrent mandrel is approx. 5-3/4″ x 4-1/4″
SpeedOEM rated at Up to 40 cpm
YearMfg 2010
ConditionUsed
FootprintApprox. 84" W x 88" L x 83" H
NotesStainless steel construction
